InfoPath 2010 - Sharepoint 2010 Custom Workflow
In Part 2 I'll create a new Visual Studio solution for the custom workflow project, the project will include some exception handling in case any errors occur so I can see the output from the exception(s).
Prior to creating the Visual Studio project the following items need to be in place.
1. A demo Site Collection where the solution will be deployed
2. A customized forms list where I'll attach the workflow
Create the Sharepoint Site and List
First create a new site collection where the workflow will be deployed. Once this is in place create a new list, choose Site Actions - View All Site Content | Create. Select the Issue Tracking list type from the available list templates, for this example I will name the list Issues.
Once the Issues list has been created select the list and from the list tab in the ribbon choose customize form, this will open the form in InfoPath.
All of the default fields are ok for this example but we'll need to add a SiteName field to the form. I'll replace the Issue Status default field with the Site Name that I need for the custom workflow. Select the Issue Status text from the labels in the left column and change the text to Site Name, then select the dropdown to the right and delete this dropdown control.
Next with your cursor still in the area where the Issue Status dropdown control was double click the textbox control on the Home tab of the ribbon on the top of the page. This will add a new textbox control to the form.
The new textbox should be given a value of field1 by default. From the Fields dialog on the right side right click on the field1 property and select field properties.
Next select File and choose Quick Publish to save the changes to the form in Sharepoint.
Create the Visual Studio Project for the Workflow Solution
Select New Project | Visual C# | .Net Framework 3.5 | Empty Sharepoint Project
Add a new item to the project
Right click on the project name and select Add | New Item - Select C# | Sharepoint 2010 | Sequential Workflow
The Sharepoint Customization Wizard dialog will open, select a name for the new workflow InfoPath_Workflow, Select List Workflow
Note: The site you selected must have a task and workflow history list available for the new workflow or you will receive the following error message. This might occur if you used the blank site template to create the new site.
Select the Sharepoint lists to associate the workflow with
Ensure the workflow starts automatically when a new item is created checkbox is selected and click finish
The workflow designer surface will open in Visual Studio
Select View Toolbox and pin the Toolbox open. Expand the Windows Workflow V3.0 Node
Drag a While Control into the line under the onWorkflowActivated1 shape
Drag a Code Control onto the line under the whileActivity1 shape
Expand the Sharepoint Workflow Node
Drag a OnWorkflowItemChanged activity onto the text Drop and Activity Here inside the whileActivity1 shape
Note: Workflows are stored in a gallery at the Site Collection level so the scope will be Site.
Configure the Workflow Feature
When I added the Sequential Workflow to the project a Sharepoint Feature was added, I'll now configure this Feature.
I'll start by expanding the features folder and renaming the feature to InfoPathWorkflow. Next I'll double click the Feature name to open the Feature properties.
I'll change the Feature title in the Title textbox and ensure the Feature scope is set to Site. I'll also verify the the InfoPathWorkflow is listed in the Items in the Feature control.
Verify/Validate the Package
In the Solution Explorer I'll double click on the Package folder.
This will bring up the properties for the package, I'll rename the package and ensure the InfoPathWorkflow is in the Items in the Package control. Next I'll Validate the package and sure there are no warnings or errors with the deployment package.
Select View | Other Windows | Package Explorer
Right click on the package and select Validate
You should see a successful validation in the output window
Add Custom Code
Next I'll add some custom code to define the logic for the workflow by expanding the InfoPathWorkflow folder and double clicking the InfoPathWorkflow.cs class. This will bring up the design workflow design view. In the design view click the whileActivity1 red exclamation | Choose the property 'Condition' is not set option.

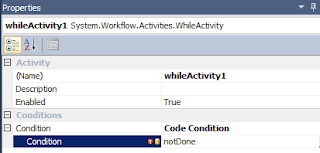

In the properties window select from the Condition property dropdown: Code Condition
Next expand the Condition property and type into the child Condition property: notDone and press enter
The logic in the code will allow the workflow to run until our condition is met and we change a variable to indicate the workflow is complete.
First I'll create a method to indicate the workflow is not complete. Right click on the workflow design surface and select View Code. Find the auto-generated notDone method and replace the code with the following code snippet.
bool done = default(bool);
private void notDone(object sender, ConditionalEventArgs e)
{
e.Result = !done;
}
The while activity looks at the e.Result value to determine if the loop will continue or not. The onWorkflowItemChanged event will await the event that the workflows list item has changed ( is the site name provided? ) when that happens the after event (invoked) of the onWorkflowItemChanged activity will fire providing the opportunity to change the done variable to true. The while loop will then run the notDone method to check the e.Result which will always return the opposite of done (!done) the while loop will exit when done is set to true.
Double click the onWorkflowItemChanged1 shape in the designer view to generate the onWorkflowChanged1_Invoked method. Replace the auto-generated method with the following code snippet
private void onWorkflowItemChanged1_Invoked(object sender, ExternalDataEventArgs e)
{
isSiteNameProvided();
}
private void isSiteNameProvided()
{
if(!string.IsNullOrEmpty(workflowProperties.Item["SiteName"] as string))
{
done=true;
}
}
Double click on the onWorkflowActivated1 shape to generate the onWorkflowActivated1_Invoked method. Replace the auto-generated method with the following code snippet.
private void onWorkflowActivated1_Invoked(object sender, ExternalDataEventArgs e)
{
isSiteNameProvided();
}
From the workflow designer surface click on the onWorkflowItemChanged1 red exclamation and choose the activity 'onWorkflowItemChanged1' does not have a Correlation Token property set option
Note: A Correlation Token is just an unique identifier for the workflow, it's used to keep all of the individual workflow activities together.
From the properties window select the CorrelationToken property dropdown: workflowToken.
Back to the design surface and choose the codeActivity1 red exclamation, select the property 'ExecuteCode' is not set. Double click the codeActivity1 shape to generate the ExecuteCode method
Add Exception Handling to the Workflow
Next I'll add some error handling so if an exception occurs we'll write the text of the exception to the History List and set the column status to error logged and allow the workflow to exit and complete.
Next ensure the toolbox is open and the Windows Workflow V3 node is expanded. Drag and drop a FaultHandler activity onto the Drop FaultHandlerActivity Here text.
In the Workflow Exceptions window select the faultHandlerActivity1 red exclamation, choose the Property 'FaultType' is not set or its value cannot be resolved to an actual type option.
In the properties window select the FaultType property ellipses, in the Browse and Select a .NET type window Select Referenced Assemblies | mscorlib on the Type tab. Select the System type, locate Exception in the type name column (scroll the right pane down) Select the Exception type name (System.Exception) and select OK.
In the Visual Studio Toolbox expand the Sharepoint Workflow node, Drag and drop a LogToHistoryListActivity activity into the Drop Activities Here text. Drag and drop a SetState activity on the line below the logToHistoryListActivity1 shape
Next I'll configure the Log to History List Activity to write the exception details to the Workflow History List and the Set State Activity to end the Workflow with a custom status called Error Logged.
On the InfoPathWorkflow design surface right click the logToHistoryListActivity1 shape and select the properties option. Select the HistoryDescription property and click the ellipsis.
In the Bind History Description dialog expand faultHandlersActivity1 | faultHandlerActivity1 | Fault | Message and select OK
In the properties window select the HistoryOutcome property and click the ellipsis. In the bind History Outcome to an activity dialog expand faultHandlersActivity1 | faultHandlerActivity1 | Fault - Select the StackTrace option and select OK
In the Visual Studio Solution Explorer double click the elements.xml file
Replace the metadata node and its contents with the following code
<MetaData>
<ExtendedStatusColumnValues>
<StatusColumnValue>Error Logged</StatusColumnValue>
</ExtendedStatusColumnValues>
</MetaData>
Back to the design surface for the Infopath workflow, double click the setState1 Activity, replace the setState1_MethodInvoking with the following code
private void setState1_MethodInvoking(object sender, EventArgs e)
{
setState1.State = (int)SPWorkflowStatus.Max;
}
This code will set the workflow state to the custom StatusColumnValue defined in the elements.xml file
Back to the workflow design surface, select the red exclamation next to setState1 activity
The last part of this tutorial will involve deploying the Visual Studio Solution and testing.
From Visual Studio right click on the project name and select Deploy, ensure there are no errors in the build and wait for the process to complete.
Next, well visit the site that we deployed the workflow to, in my case it is at http://w2k8r2_2010dev/sites/apps/
Select the list that we created in step 1 - Issues
From the Ribbon select the List tab and Click the Workflow Settings dropdown | Add Workflow
Select the InfoPath Workflow from the available Workflows, enter a name for the workflow and select the Start this workflow when a new item is created checkbox
From the Issues List create a new item
Note: If your URL has an underscore (_) in it you will receive the following message: The form cannot be displayed in the browser because the use of session cookies has been disabled in the current browser settings
In my case and can simply change the machine name in the URL with Localhost after adding an alternate access mapping and everything works.
Next Add the new item - MyIssue, I'll intentionally leave the SiteName field blank to demonstrate the workflow functionality
Immediately after we submit the new item the status will change to Starting
Then the workflow status will quickly change to In Progress
Next I'll edit the entry and add the SiteName (MyIssues Site) and in a minute or two I will see the Quicklaunch area under Site Collections will be updated with the new SiteName. If this is the first entry then the Site Collections heading will be added and a link to the new site will be listed below.
Back to the workflow design surface, select the red exclamation next to setState1 activity
Choose the Activity setState1 does not have CorrelationToken property set, select the correlationtoken property dropdow: workflowToken
Now when an exception occurs it will be handled and logged as shown below
Create a New Site Collection and Add Quicklaunch Link to Site
The next part of this tutorial will involve programmatically creating a new site collection if the site name condition is met on the list we are attaching this custom workflow to.
Right click on the InfoPath workflow design surface and select view code. In the top area of the InfoPathWorkflow.cs file add the following import directive
using Microsoft.SharePoint.Navigation;
Next replace the method codeActivity1_ExecuteCode with the following code.
private void codeActivity1_ExecuteCode(object sender, EventArgs e)
{
//Get the Site Name
string SiteName =
workflowProperties.Item[SITE_NAME_COLUMN].ToString();
// Get the system token, instantiate new site and web objects
// in order to have permissions to create the new Site Collection
SPUserToken _sysToken = default(SPUserToken);
SPSecurity.RunWithElevatedPrivileges(delegate()
{
using (SPSite site = new SPSite(workflowProperties.Site.Url))
{
_sysToken = site.SystemAccount.UserToken;
}
});
using (SPSite siteCollection = new SPSite(workflowProperties.Site.Url, _sysToken))
{
using (SPWeb web = siteCollection.OpenWeb(workflowProperties.Web.ServerRelativeUrl))
{
//Gather user information
SPUser user = web.SiteAdministrators[0];
string adminLogin = getLoginName(user);
string adminEmail = user.Email;
string adminDisplayName = user.Name;
SPSite newSiteCollection = default(SPSite);
Microsoft.SharePoint.SPSecurity.RunWithElevatedPrivileges(
() =>
{
//Set the new site collection properties
newSiteCollection =
web.Site.WebApplication.Sites.Add(
"/sites/" + SiteName, // Url
SiteName,
"Site Created by Submitting InfoPath Form",
1033, // locale identifier - US English
"SGS#0", // Basic Group Work Site Template
adminLogin,
adminDisplayName,
adminEmail);
});
if (default(SPSite) != newSiteCollection)
{
// Add Site Collection Administrators
addSiteCollectionAdministrators(web.SiteAdministrators,
newSiteCollection.RootWeb.SiteAdministrators);
string newSiteCollectionUrl =
newSiteCollection.MakeFullUrl(newSiteCollection.ServerRelativeUrl);
// Add Site collection link to Quick Launch
SPNavigationNode projectSiteNode =
new SPNavigationNode(SiteName, newSiteCollectionUrl, true);
// Create or retrieve the Site Collections node
SPNavigationNode siteCollectionsNode =
ensureHeadingNode("Site Collections", web.Navigation.QuickLaunch);
siteCollectionsNode.Children.AddAsLast(projectSiteNode);
}
}
}
}
//Extract a readable username
private string getLoginName(SPUser user)
{
string loginName = default(string);
int pipePosition = user.LoginName.IndexOf("|");
if (0 >= pipePosition)
{
loginName = user.LoginName.Substring(pipePosition + 1);
}
else
{
loginName = user.LoginName;
}
return loginName;
}
// Add the Site Collection Administrators from
// the current Site Collection to the new Site Collection
private static void addSiteCollectionAdministrators(
SPUserCollection existingSiteAdmins, SPUserCollection newSiteAdmins)
{
// Add the Workflow's Site Collection Administrators
// to the new Site Collection
foreach (SPUser admin in existingSiteAdmins)
{
newSiteAdmins.Add(
admin.LoginName, admin.Email, admin.Name, admin.Notes);
}
}
// Add a custom SPQuickLaunchHeading NavNode
// if it doesn't already exist
private static SPNavigationNode ensureHeadingNode(
string nodeHeading, SPNavigationNodeCollection quickLaunch)
{
// Get the first NavNode in the Web's Quick Launch
SPNavigationNode projectSitesNode = quickLaunch[0];
if (nodeHeading != projectSitesNode.Title)
{
// Quick Launch Heading NavNode called nodeHeading
// linked to the Web's Home Page (empty string)
projectSitesNode =
new SPNavigationNode(nodeHeading, string.Empty);
quickLaunch.AddAsFirst(projectSitesNode);
}
return projectSitesNode;
}
Deploy and Test
The last part of this tutorial will involve deploying the Visual Studio Solution and testing.
From Visual Studio right click on the project name and select Deploy, ensure there are no errors in the build and wait for the process to complete.
Next, well visit the site that we deployed the workflow to, in my case it is at http://w2k8r2_2010dev/sites/apps/
Select the list that we created in step 1 - Issues
From the Ribbon select the List tab and Click the Workflow Settings dropdown | Add Workflow
From the Issues List create a new item
Note: If your URL has an underscore (_) in it you will receive the following message: The form cannot be displayed in the browser because the use of session cookies has been disabled in the current browser settings
In my case and can simply change the machine name in the URL with Localhost after adding an alternate access mapping and everything works.
Next Add the new item - MyIssue, I'll intentionally leave the SiteName field blank to demonstrate the workflow functionality
Then the workflow status will quickly change to In Progress
The workflow status will remain at In Progress until we edit the item we submitted and add a SiteName
Note: If a SiteName is added initially the workflow will complete quickly on its own
Next I'll edit the entry and add the SiteName (MyIssues Site) and in a minute or two I will see the Quicklaunch area under Site Collections will be updated with the new SiteName. If this is the first entry then the Site Collections heading will be added and a link to the new site will be listed below.
